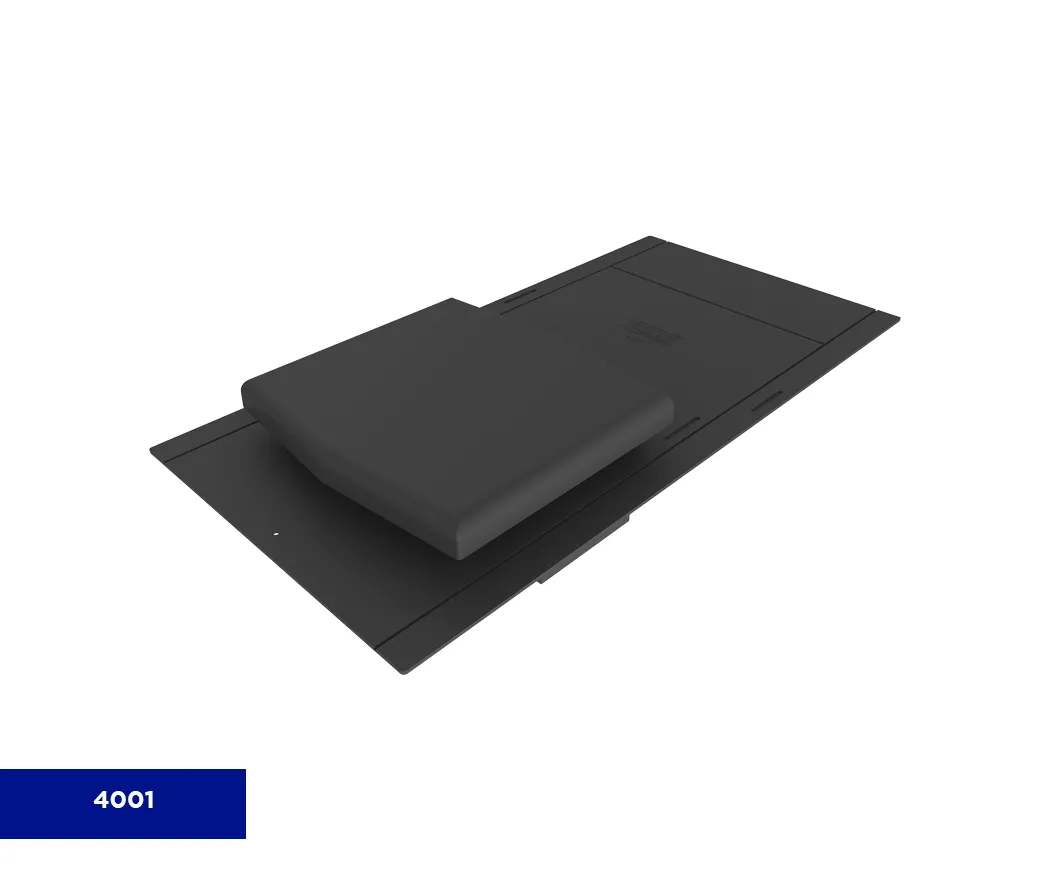

Timloc 4001 Universal Hooded Slate Vent

For use on new build and existing roof applications. Intended to replace one normal roof slate and suits slate sizes of either 600mm x 300mm or 500mm x 250mm.

Use:

• For replacement of one normal roof slate to provide a ventilator
• Ventilating a roof space at low level or high level
• Connection to mechanical extraction from kitchen/bathrooms
• Ventilation outlet for soil vent pipe

Features and Benefits

• Suitable for roofs with a minimum pitch of 22.5°
• Free ventilation area of 10,000mm²
• Suits slate sizes 600mm x 300mm or 500mm x 250mm
• 4mm spaced external grille prevents entry of vermin and large insects
• Provides a 110mm duct connection with the optional 4101 pipe adapter kit
• Lightweight and easy to handle
• Inconspicuous low hood protects the internal grille from rainwater

Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding – product specifications ( A1:2017)
• BS 5250: 2021 Management of moisture in buildings – Code of practice
• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice ( A2:2018)
• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
• Complies with all relevant sections of the Building Regulations 2010
• Satisfies all relevant NHBC requirements

Compatibility

• Natural or Synthetic slates in sizes 600mm x 300mm or 500mm x 250mm from all major manufacturers.

Material and Colour

• Manufactured from Polypropylene.
• Available in black only.

Accessories

• Can be combined with the pipe adaptor kit (4101) to enable connection of 110mm soil vent pipe and/or mechanical extractor
• Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI)
• The 110mm Flexipipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe

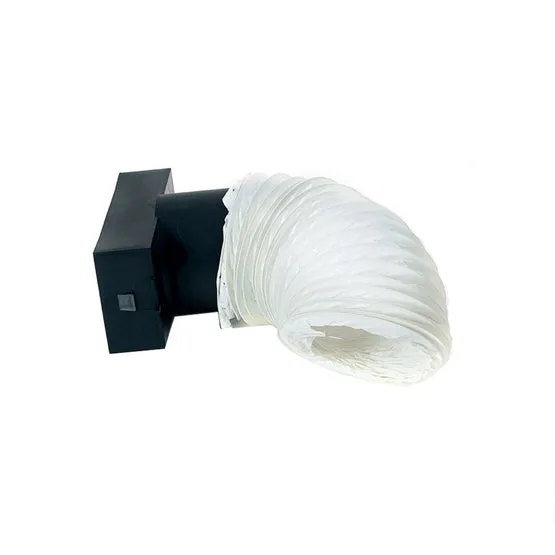

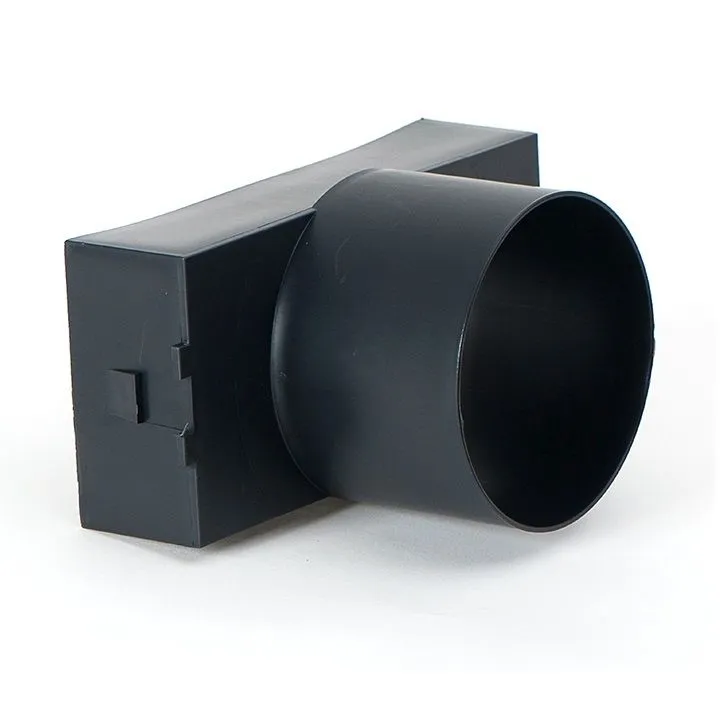

Roof Slate Pipe Adapter Kit

• High-quality adapter kit contains a pipe adapter, 500mm long flexible duct & 2 plastic fixing ties

• Easy installation to the underside of the slate vents in new builds & refurbishments

• Allows a 100mm pipe soil to be connected
• Manufactured for optimum durability and low maintenance
• Straightforward fitting for homeowners & expert tradespeople
• Low-profile, hidden design
• Complies with all relevant Building Regulations & relevant British Standards
